APMM-850GM

Experience reliable and efficient power delivery with our 80Plus Gold Fully Modular PSU, 「APMM-850GM」.


Offering top-tier protection and outstanding performance at an unbeatable price, the AP-GM series is ideal for DIY PC builders seeking a power supply loaded with features without overspending.


The APMM-850GM is 80Plus Gold 230V EU Certified, delivering up to 90%+ efficiency for optimized power performance.

The cooling and hardware layout shown in the product photos is for reference only. Please check the website’s product specifications for the actual configuration

Variation

Type

APMM-1000GM-1920x960

Efficient, Fully Modular Power

    • Efficient, Fully Modular Power

      The APMM-850GM series fully modular power supplies provide dependable 80 PLUS Gold efficiency, allowing you to use only the necessary cables for a tidier build.

    • Sleek Design, Superior Airflow: The Perfect PSU Enclosure

      Discover the epitome of style and functionality with our PSU featuring an Elegant and Enhanced Airflow Casing Design. This PSU not only looks stunning but also optimizes airflow for peak performance.

    • ATX 3.1 Ready: Embrace the Future

      The latest power specifications are here. ATX 3.1 introduces stricter voltage and current regulation standards for next-gen hardware. Included with the PSU is a 16-pin PCIe cable capable of
      elivering up to 600W to PCIe Gen 5.1 graphics cards, enabling high-performance power delivery for compact builds.

Power Up with Confidence: The Ultimate Protection in Your PSU

Engineered with top-quality components and rigorous testing, it’s built to withstand the most demanding usage scenarios, ensuring a stable and reliable power supply with OVP, UVP, OPP, SCP protection for your system.

    • More Stable And Efficient

      Supports the C6/C7 energy-saving state of intel’s latest processors, providing a more stable, efficient and energy-saving solution.

    • Uncompromising Craftsmanship

      Using 100% high-quality Japanese electrolytic capacitors, it has high stability and reliability, extending the service life of the power supply.

    • Whisper-Quiet Cooling Mastery For Your PSU

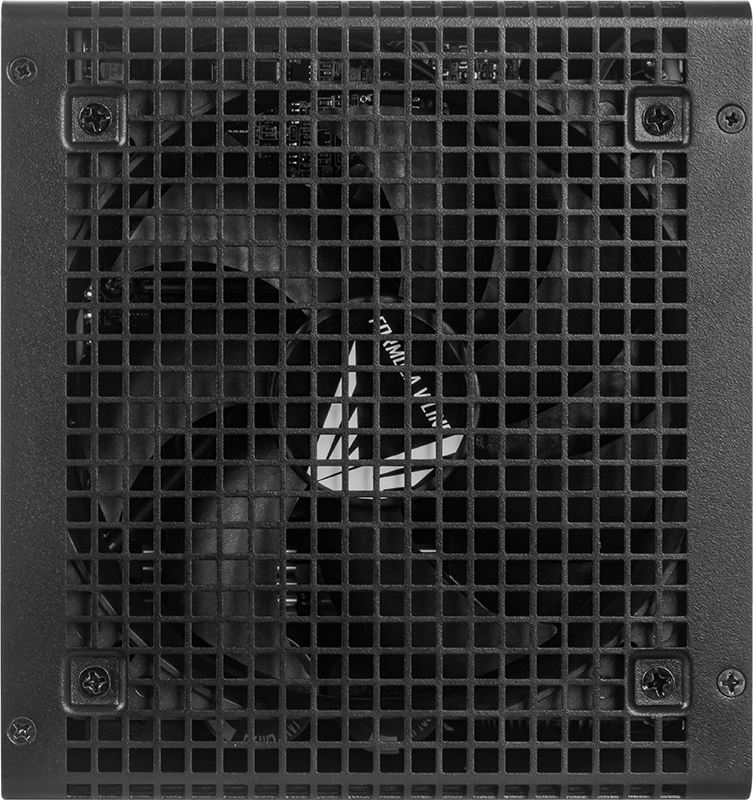

      Upgrade your PC’s cooling game with our 12CM FDB Fan featuring Smart Auto Thermal Control. This powerhouse addition to your PSU brings unparalleled tranquility and efficiency to your computing experience.

Specifications

  • Model

    APMM-850GM

  • Dimension

    140 x 150 x 86mm

  • Real Watts

    850W

  • Efficiency

    80Plus Gold

  • Input Voltage

    Full range

  • Type

    ATX3.1 / PCIe5.1

  • Main Capacitor

    Japanese Capacitor

  • PFC

    APFC

  • Fan

    120mm FDB

  • Modular

    Full Modular

  • Net Weight

    11.50 kg

  • Gross Weight

    12.22 kg

  • EAN

    APMM-850GM: 4711401661276

AC Input

  • AC

    100-240V 5-12.5A 50-60Hz

DC Output

  • 3.3V

    15A

  • 5V

    18A

  • 3.3V and 5V combined

    105W

  • +12V

    70A

  • -12V

    0.3A

  • +5Vsb

    2.5A

  • Total Power

    850W

Cable SPEC

  • Mainboard

    20+4P (600mm) Black flat cable x1

  • CPU

    P8(4+4) (650mm) Black flat cable x2

  • PCI-E

    P8(6+2) to P8(6+2)(600mm) Black flat cable x2

  • PCIe5.1

    PCIe 5.1 H++ 12V-2X6 12VHPWR 16Pin (730mm, 600W) x1

  • SATA / IDE

    SATA(500mm)+ SATA(150mm)+ SATA(150mm)+ SATA(150mm) Black flat cable x2

  • SATA / IDE

    IDE(500mm)+ IDE((150mm)+ IDE(150mm)+ IDE(150mm) Black flat cable x1
